Cement Silo Manufacturers Concrete Silos Suppliers
Cement Silo Manufacturers Concrete Silos Suppliers Safety 1. Electric Air plug, fast connect and anti-rain2. Mostly elec;
Basic Info
Model NO. | CS35C |
Certification | ISO9001: 2000, CE, SGS |
Condition | New |
Color | Ral Color Code |
Safety | Stainless Steel Pressure Relief Valve |
Dust Collector | Air Jet, Auto Cleaning |
Level Indicator | 24V DC |
Cement Flow | Air Power Help Cement Flow Fastly |
Work on Ship | Suitable |
Stackable | 5 Layers or Customization |
Transport Package | Container |
Specification | 6058*2438*2591mm |
Trademark | DOM |
Origin | China |
HS Code | 84749000 |
Production Capacity | 100 |
Product Description
Cement Silo Manufacturers Concrete Silos Suppliers
Storage silo | Volume | 27 m3 ,35t |
Weight | 3600KGS | |
Power | 18 KW | |
Thickness | Stronger Corrugated board design 4mm, bottom 5mm | |
Loading work | Built-in pipe, Cement is distributed evenly in silo | |
Structure Strengthen | Reinforcing bars inside | |
Transport size | 6058×2438×2591mm 20'x8'x8'6" | |
Control System | Schneider Electric parts |
Safety 1. Electric Air plug, fast connect and anti-rain2. Mostly electric cable are hidden in wire tube, the control box is locked if don't work. To ensure the safety of electricity3. Safety logo in may danger place.4. Emergency stop for electric parts.5. Connect ground line6. Pressure relief valve - balance pressure in silo7. Dust collector, balance air in / out silo.
Terminal Silos
A variety or our fully portable Silos that can be used for temporary storage of bulk materials. Our fully portable load-out terminals! These silos are designed to be used as quick setup terminals for the distribution of bulk products ie. (cement, fly ash, etc.). Typically these terminals can be setup in a few hours, store between 30 to 500 tons of product and load a truck in 10 to 20 minutes.

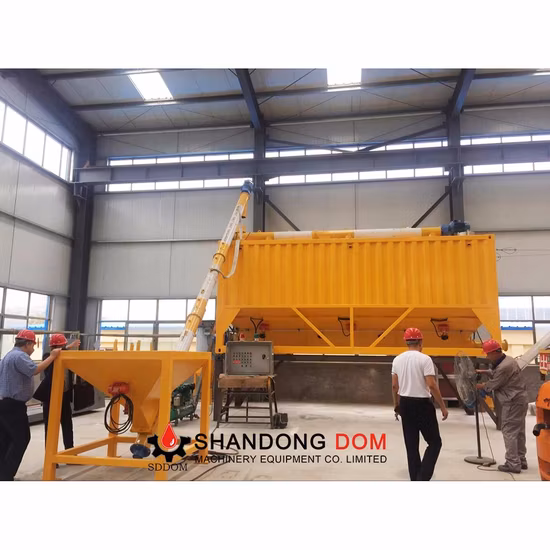

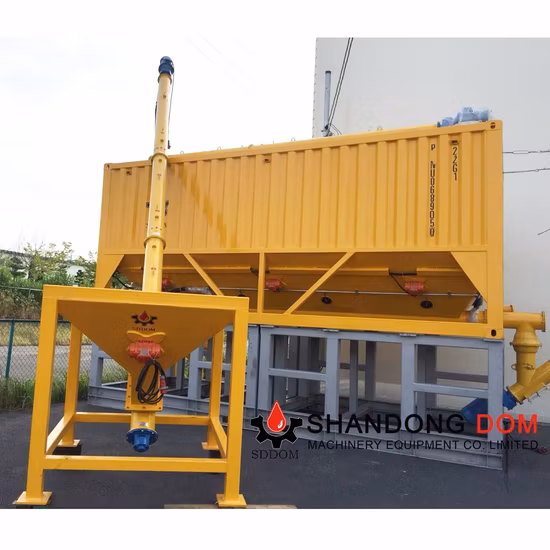

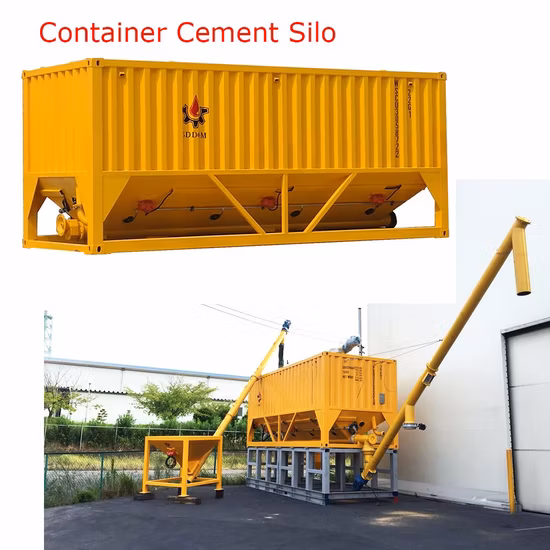

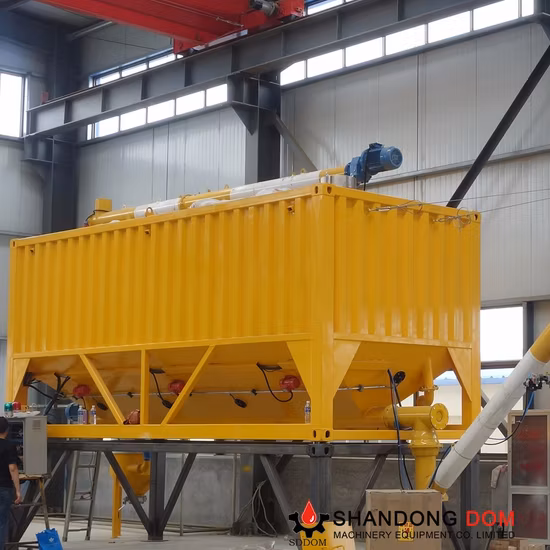

Horizontal cement silo designed for easy flowing materials such as portland cement with a bulk density of 1.13 tonnes/M³.As standard the silo system is mounted on a common flat rack hook container frame. Alternatively, we can deliver the silo system mounted on a bogie or on a flat rack trailer.The horizontal cement silos are delivered complete with silo equipment, external moto vibrators, air pads, cement augers, self-cleaning filter and control unit.Our horizontal cement silo is idea for mobile batching plant when the silo is supplied on a bogie. The batching plant can be set up and be producing concrete with a few hours.
