Schwing Hydraulic Component A2FM28/61W-Pzb06

Basic Info

Model NO.	A2FM28/61W-PZB06
Material	Cast Iron
Versatility	International
Transport Package	Carton
Specification	A2FM28/61W-PZB06
Origin	China
Production Capacity	500000

Product Description

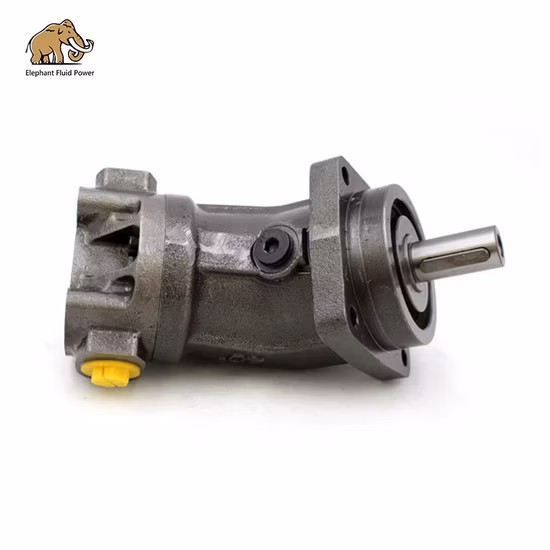

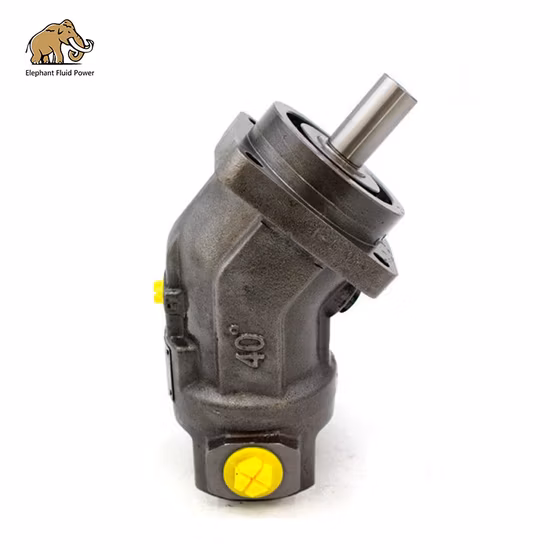

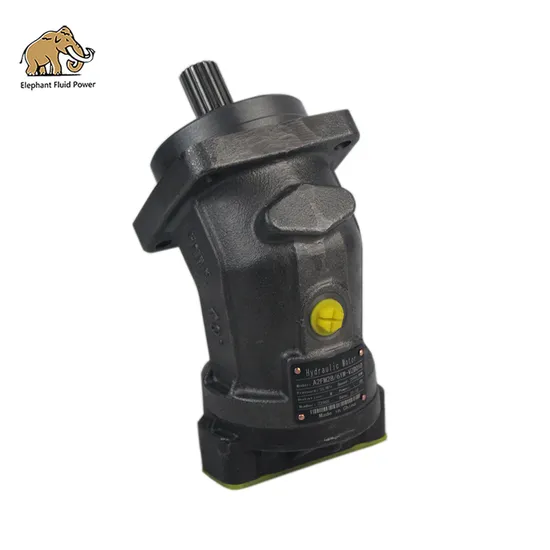

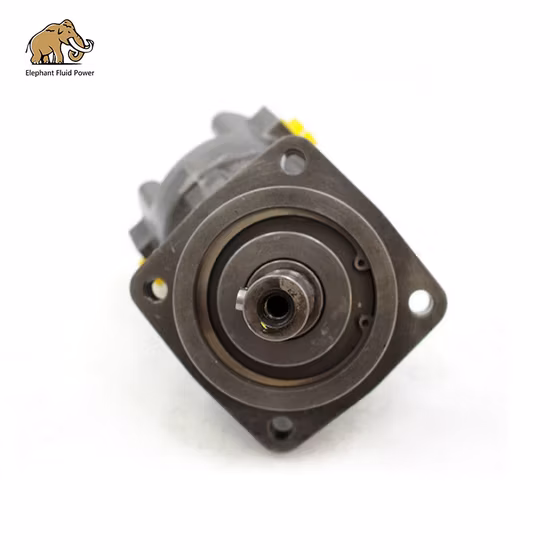

SCHWING hydraulic component A2FM28/61W-PZB06

Elephant Fluid Power can provide rexroth hydraulic piston motor A2FM28 for concrete pump manufature,maintain,repair and rebuild,we have been a supplier for world famous brand,our quality is equivalent as the original one,best price,fast delivery time,good aftersales serveces,and technical support.

Technical parameters:

Rexroth A2FM motor				A2FM5	A2FM10	A2FM12	A2FM16	A2FM23	A2FM28	A2FM32	A2FM45
Displacement		V g	cm³	4.93	10.3	12	16	22.9	28.1	32	45.6
Speed		nnom	rpm	5600	3150	3150	3150	2500	2500	2500	2240
Flow	at nnom	qV	l/min	27.6	32.4	37.8	50	57	70	80	102
Power	Δp = 315 bar	P	kW	14.5	-	-	-	-	-	-	-
	Δ p = 400 bar	P	kW	-	21.6	25	34	38	47	53	68
Torque	Δp = 315 bar	T	Nm	24.7	-	-	-	-	-	-	-
	Δ p = 400 bar	T	Nm	-	65	76	101	145	178	203	290
Weight (approx.)		m	kg	2.5	6	6	6	9.5	9.5	9.5	13.5
Rexroth A2FM motor				A2FM56	A2FM63	A2FM80	A2FM90	A2FM107	A2FM125	A2FM160	A2FM180
Displacement		V g	cm³	56.1	63	80.4	90	106.7	125	160.4	180
Speed		nnom	rpm	2000	2000	1800	1800	1600	1600	1450	1450
Flow	at nnom	qV	l/min	112	126	144	162	170	200	232	261
Power	Δ p = 400 bar	P	kW	75	84	96	108	114	133	155	174
Torque	Δ p = 400 bar	T	Nm	356	400	511	572	678	795	1020	1145
Weight (approx.)		m	kg	18	18	23	23	32	32	45	45
Rexroth A2FM motor				A2FM200	A2FM250	A2FM355	A2FM500	A2FM710	A2FM1000
Displacement		V g	cm³	200	250	355	500	710	1000
Speed		nnom	rpm	1550	1500	1320	1200	1200	950
Flow	at nnom	qV	l/min	310	375	469	600	826	950
Power	Δ p = 350 bar	P	kW	-	219	273	350	497	554
	Δ p = 400 bar	P	kW	207	-	-	-	-	-
Torque	Δ p = 350 bar	T	Nm	-	1393	1978	2785	3955	5570
	Δ p = 400 bar	T	Nm	1272	-	-	-	-	-
Weight (approx.)		m	kg	66	73	110	155	322	336

Application:

Concrete Truck Mixer, Concrete Pump truck ,Tractor

Advantage:

Even if the operation is reversed, there is maximum reliability

Low noise

Cavitation resistance to key fluids

Ideal for variable speed drive systems

Long service life, even with cyclic loading

Heavy-duty material, so it can be used in harsh environments and various fluids





Why chose us:

Quality : High qualityPrice : Very competitiveServicvs : The bestDelivery : Fast delivery



Competitive Advantage:

Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries

100% replace with Original

Fast delivery time

Top quality with good price

Professional technicians and After-sales service



Our other main business:

Hydraulic piston pump and spare parts	Hydraulic vane pump and spare parts
Hydraulic piston motor and spare parts	Hydraulic orbital motor
Hydraulic steering unit	Hydraulic gear pump
Directional control valve
